A.A.G. Stucchi portfolio now includes a comprehensive range of Installation Couplers from Italian company ELETPLAST.

The products listed here have been tested in accordance with AS/NZS 61535 Installation Couplers intended for permanent connection in fixed installations  The range is covered by Certificate of Suitability CS10782N.

  • Mouldings: PA 6/6 V0
  • Contacts: Brass silver plated
  • Current rating: 20A 100°C (2 pole series: 16A 100°C)
  • Upper Limit T: 160°C
  • Protection Class: IP20/IP40 when plugged in (EPC series without strain relief cover IP20 only)

When considering any of the Installation Couplers in the range, please read the detailed information in the EPc product catalogue and the Instructions for Use.

Please be aware that our products are specialised components for use by manufacturers or licensed persons only.

Contact us to discuss your specific project needs.


EPC Series: Basic Design with screw terminal (with strain relief & cover)

Not for use with EPS Series (Wall Mount Application)

  • Features integrated locking device (for compliance with AS/NZS 61535)
  • Competitive pricing
  • Available in 3 pole and 5 pole versions (4 pole on request)
  • 20A 250/400V
  • Conductor size 0.5-2.5mm² (20A min. conductor size 1.5mm²)


Part No.
No. POles
Description
Colour*
Data Sheet
EPC Installation Couplers EPC1105 image
EPC1105
3 pole
Plug (male)
White
EPC1105
EPC Installation Couplers EPC1115 image
EPC1115
3 pole
Socket (female)
White
EPC1115
EPC Installation Couplers EPC1305 image
EPC1305
5 pole
Plug (male)
White
EPC1305
EPC Installation Couplers EPC1315 image
EPC1315
5 pole
Socket (female)
White
EPC1315

*Black also available. Please contact us with your requirements.

Please refer to the individual product data sheet for the full product specification and read the Instructions for Use carefully.


EPN Series: Flat Design with Screw Terminals (complete with strain relief)

Can be use with EPS Series (Wall Mount) & EPC Series (Basic Design)

  • Locking device available (for compliance with AS/NZS 61535)
  • Available in 3 pole and 5 pole versions (4 pole on request)
  • 20A 250/400V
  • Conductor size 0.5-2.5mm² (20A min. conductor size 1.5mm²)
LA PArt No.
No. POles
Description
Colour*
Data Sheet
EPC Installation Couplers EPN1105 image
STEPN1105
3 pole
Plug (male)
White
EPN1105
EPC Installation Couplers EPN1115 image
STEPN1153 pole
Socket (female)
White
EPN1115

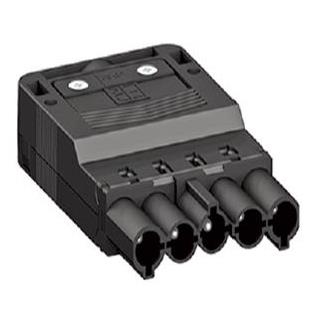

EPC Installation Couplers EPN1305 image
STEPN1305
5 pole
Plug (male)
White
EPN1305
EPC Installation Couplers EPN1315 image
STEPN1315
5 pole
Socket (female(
White
EPN1315

*Black also available. Please contact us with your requirements.

Please refer to the individual product data sheet for the full product specification and read the Instructions for Use carefully.


EPN Locking Device

  • Locking device must be used for compliance with AS/NZS 61535 (separate locking device not required for EPN to EPS connection)
La Part No.
Description
Colour
Data Sheet
EPC Installation Couplers EPNH4 image
STEPNH4
EPN Plug to EPN Socket
Black
EPNH4
EPC Installation Couplers EPNH2 image
STEPNH2
EPN Plug to EPC Socket
Black
EPNH2
EPc Installation Couplers EPNH3 image
STEPNH3
EPC Plug to EPC Socket
Black
EPNH3


eps sERIES: wALL mOUNT aPPLICATION

For use with EPN Series only

  • Built-in design with snap-in fixing and locking device for wall mount applications
  • Available in 3 and 5 pole versions (4 pole also available on request)
  • 20A 250/400V
  • Conductor size 0.5-2.5mm² (20A min. conductor size 1.5mm²)
  • Clamping spring Steel HT treated
  • Wall thickness housing 0.5-1.2mm
LA Part No.
No. Poles
Description
Colour*
Data Sheet
EPc Installation Couplers EPS7105 image
STEPS7105
3 pole
Plug (male)
White
EPS7105
EPc Installation Couplers EPS7115 image
STEPS7115
3 pole
Socket (female)
White
EPS7115

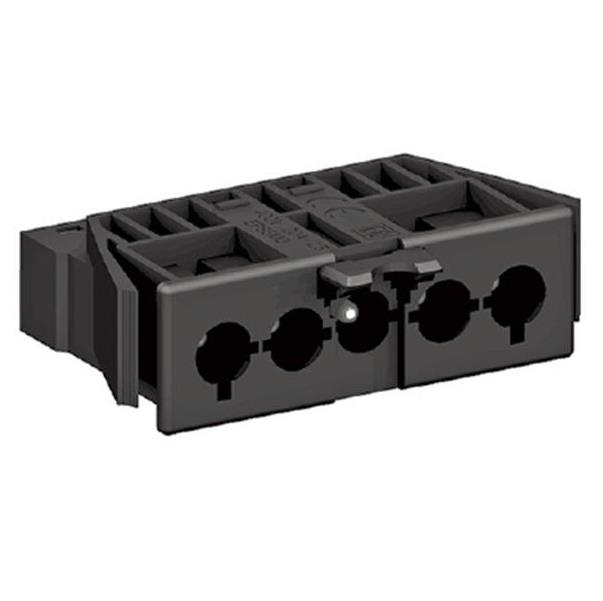

EPc Installation Couplers EPS7305 image
STEPS7305
5 pole
Plug (male)
White
EPS7305

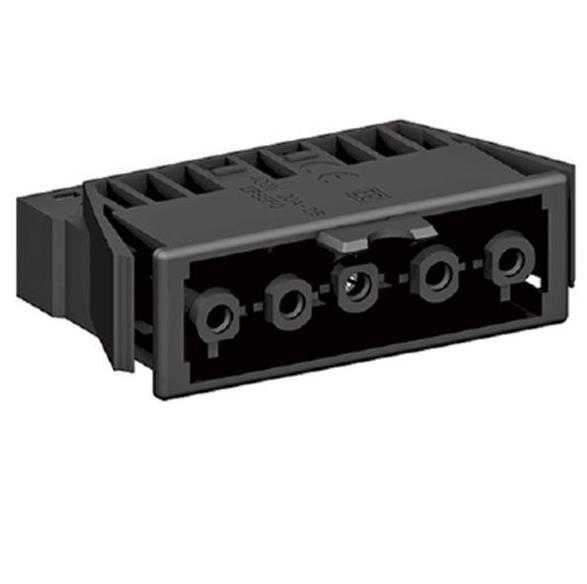

EPc Installation Couplers EPS7315 image
STEPS7315
5 pole
Socket (female)
White
EPS7135

*Black also available. Please contact us with your requirements.

Please refer to the individual product data sheet for the full product specification and read the Instructions for Use carefully.


epn, eps 2 pOLE sERIES: sPECIAL led aPPLICATION


  • 2 pole screw terminal connections
  • Features click-in, click-out locking system
  • 16A 250V
  • Conductor size 0.5-1.5mm²
  • 2 pole T splitter (1 in 2 out) also available
LA Part No.
No. Poles
Description
Colour*
Data Sheet
EPc Installation Couplers EPN0025 image
STEPN0025
2 pole
Plug (male)
White
EPN0025
EPc Installation Couplers EPN0035 image
STEPN0035
2 pole
Socket (female)
White
EPN0035
EPc Installation Couplers EPS0025 image
STEPS0025
2 pole
Plug (male) - wall mount
White
EPS0025
EPc Installation Couplers EPS0035 image
STEPS0035
2 pole
Socket (female) - wall mount
White
EPS0035

*Black also available. Please contact us with your requirements.

Please refer to the individual product data sheet for the full product specification and read the Instructions for Use carefully.


Assembled Cable


  • ELEPLAST Installation Couplers  can be ordered with or without cable connected
  • 16A 250V (1.5mm²)/ 20A 250V (2.5mm²)
  • Male to female, male to free end and female to free end options
  • 1.5 and 2.0 metre standard cable lengths (additional lengths from 0.5 - 5m available on request)

Please note the following product codes for cable orders:

EPN
15


0.5
Series



Cable mm²
(1.5,2.5)



Male/ Female
Male to free end
Female to free end
No M/F code = male to female
No. poles
(2, 3, 5)


Lead length mtrs
(1.5, 2.0)



Distribution Connectors


2 Pole Distributors

  • 16A 250V
  • 1 input male 2 poles, 2 output 2 poles
LA Part No.
Description
Colour*
Data Sheet
EPc Installation Couplers EPT005 image
STEPT005
1 in 2 out
White
EPT005

*Black also available. Please contact us with your requirements.

Please refer to the individual product data sheet for the full product specification and read the Instructions for Use carefully.


3 Pole Distributors

  •  20A 250V
  • 1 input male 3 poles, 1/2/3/5 output  3 poles
LA Part No.
Description
Colour*
Data Sheet
EPc Installation Couplers EPN0515 image
STEPN0515
1 in 1 out
White
EPN0515
EPc Installation Couplers EPT015 image
STEPT015
1 in 2 out
White
EPT015
EPc Installation Couplers EPD015 image
STEPD015
1 in 3 out
White
EPD015
EPc Installation Couplers EPE015 image
STEPE015
1 in 5 out
White
EPE015

*Black also available. Please contact us with your requirements.

Please refer to the individual product data sheet for the full product specification and read the Instructions for Use carefully.


5 POle Distributors

  • 20A 250V/400V
  • 1 input make 5 poles, 2/3/5 output 5 poles
  • 1 input make 5 poles, 1 output 5 + 1 output 3 poles
LA Part No.
Description
Colour*
Data Sheet
A.A.G. Stucchi Installation Coupler 5 Pole Distributor image
STEPT0351 in 2 out WhiteEPT035
A.A.G. Stucchi Installation Coupler 5 Pole Distributor image
STEPD0351 in 3 outWhiteEPD035
A.A.G. Stucchi Installation Coupler 5 Pole Distributor image
STEPE0351 in 5 outWhiteEPE035

*Black also available. Please contact us with your requirements.

Please refer to the individual product data sheet for the full product specification and read the Instructions for Use carefully.
